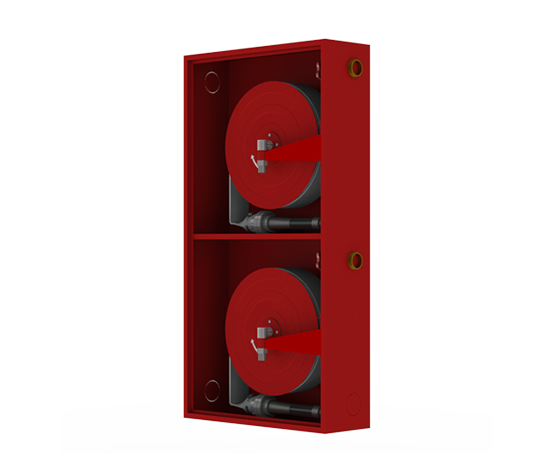

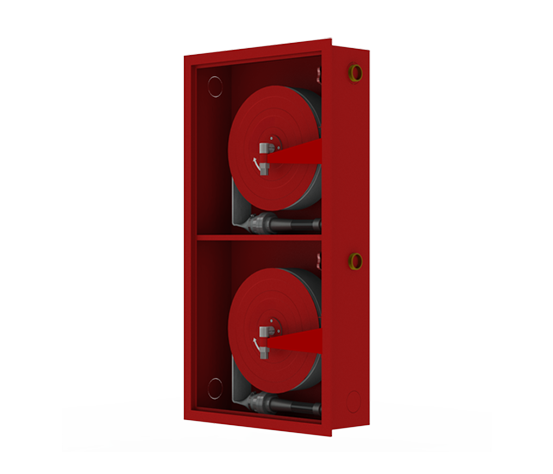

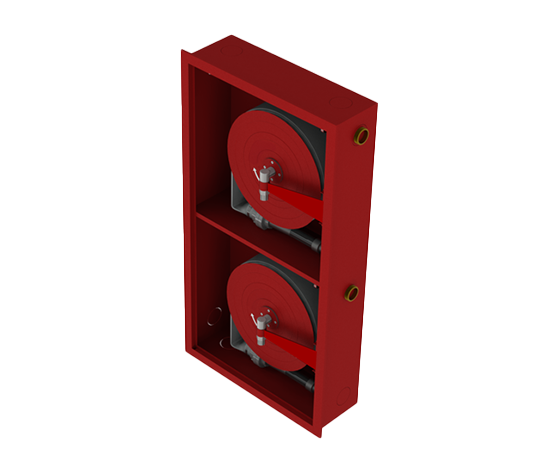

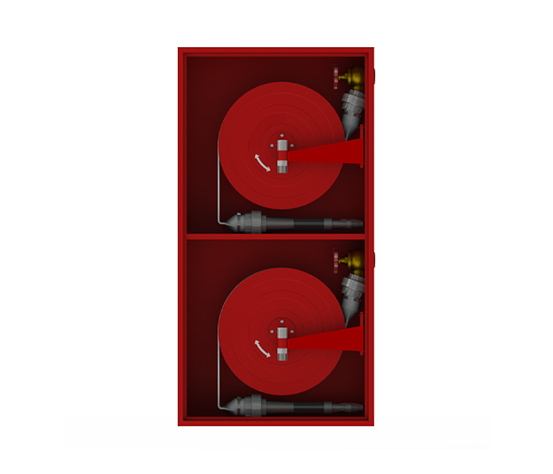

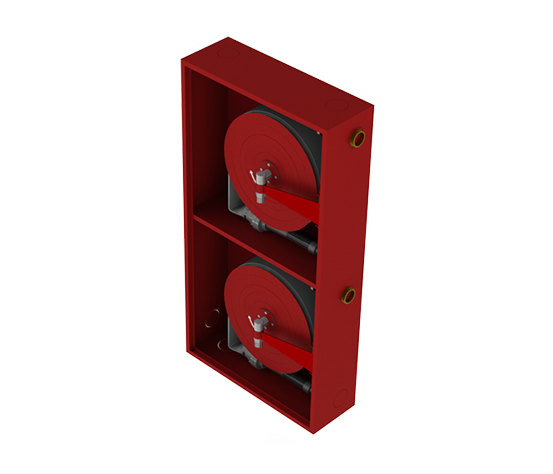

SAGE X3 /X4

• Cabinet cases are vertical, manufactured from A1 quality galvanized steel material.
• The interior/exterior surfaces are corrosion-resistant with electrostatic polyester powder paint.
• The cabinet case is resistant to reel load and impacts.
• The design of the casings is suitable for water entry from both directions.
• There are mounting holes on the casing for easy installation.
• Wall type installation provides easy setup and stabilization.
• Breakable parts are available at the corners for water inlet valve connections.
• Standard RAL 3020 (red), any desired RAL color can be painted (optionally)
• Ergonomically designed for easy access in emergencies.
• Surface and recessed mounted design, available in hinged or lockable models for quick access.

• Manufactured in accordance with EN671-2 standards.
• An 8 mm thick reel console is used to prevent bending of the reel.
• It is a center-fed water system that can swing 270 degrees.
• The lay-flat hose is 20-25-30 meters in length.
• High heat and pressure resistant, flexible and lightweight special flat hose.
• Flat hose is resistant to wear and tear.
• Connected to a DN50 brass fire valve and DN50 storz aluminium coupling.
• DN50 aluminium ball valve controlled branch pipe
• Jet-Spray-Off position-controlled modes, functional and ergonomic design
• It has double-reel structure. Without fire extinguishers
• Reel system that has passed 100% leak seal and quality tests.

Sheet Cover	Full Glass Cover	Semi Glass Cover	Decorative Cover

Single-door,or double-door surface or recessed mounted fire hose cabinets are offered with various door types, providing solutions suitable for different needs and usage areas. They are commonly preferred in indoor and outdoor spaces, areas requiring high security, industrial facilities, warehouses, places where visual inspection is crucial, shopping malls, hotels, offices and schools.

• All door types are resistant to corrosion and impacts.
• Available in various colors and designs to suit any space.
• Ergonomic designs offer easy access and usability.
• Solid Steel, Half Glass, Full Glass and Decorative models of fire hose cabinet doors.
