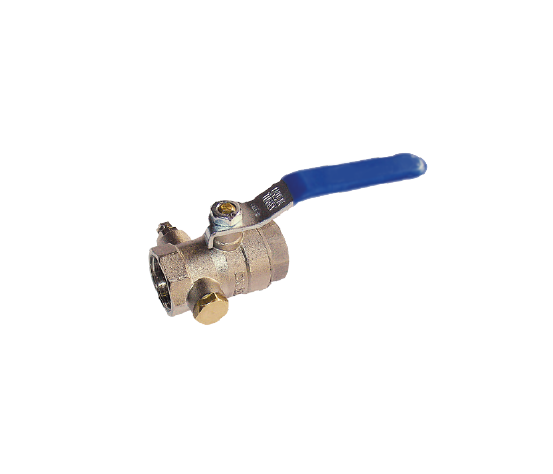

Brass Ball Valve With Drain / FF / PN16

Brass Products

Product Description

DR-BVMF-16 is a high-quality air-releasing brass ball valve, designed for full-flow with minimal resistance. This valve is suitable for the PN16 pressure class and provides good corrosion resistance, enhancing durability and reliable performance. Made from brass raw material, it offers an excellent solution for controlling fluid in various environments, with an air-release feature that is easy to use and ensures leak-proof operation and long life even under high pressure.

General Features

  • Threaded connection (FF) / 2-piece
  • Sizes range from DN15 (1/2’’) to DN50 (2’’)
  • Precise flow control and full bore
  • Air-release feature, easy to use
  • Maximum working pressure range: PN16
  • Body: Brass (CW617N) + Nickel plated
  • Bonnet: Brass (CW617N) + Nickel plated
  • Ball: Brass (CW617N) + Chrome plated
  • O-Ring: EPDM- NBR material
  • Handle: Galvanized steel + Vinyl coated
  • Gasket: High-quality sealing elements (PTFE)
  • Operating temperature range: -10 ºC / +120ºC
  • Durable and long-lasting

Application Areas

  • Domestic Water Systems
  • Heating and Cooling Systems
  • Testing Facilities
  • Building Management Systems
  • Water Treatment Systems
  • Various Industrial and Commercial Applications

Technical Specifications

Thread Standard

EN ISO 228-1

Tests

TS EN 12266-1
