Pressure Reducing Valve With Cartridge / FF / PN16

Brass Products

Product Description

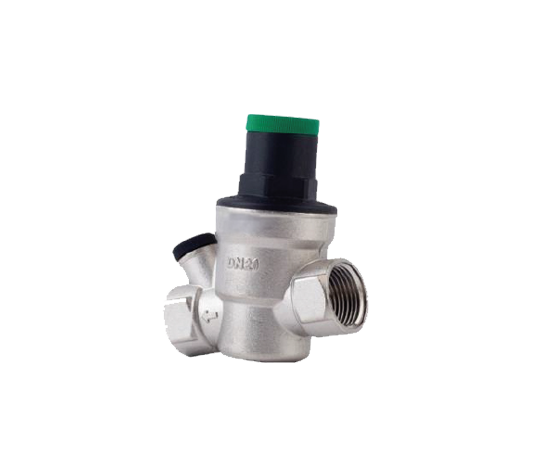

CPRV-FF-16 is a high-quality water pressure reducing valve with a replaceable cartridge and filter, designed for the PN16 pressure class. This valve is ideal for reducing water pressure to desired levels. Made from brass raw material, which offers corrosion resistance, it guarantees long-term use. The replaceable cartridge facilitates easy maintenance and quick changes, while the filter system efficiently cleans particles and dirt from the water, contributing to a healthier plumbing system.

General Features
Application Areas
Technical Specifications

Catalogue

General Features

Threaded connection (FF) , with unions (MF)
Size range from DN15 (1/2’’) to DN25 (1’’)
Maximum working pressure range: PN16
Body: Brass (CW617N) + Nickel plated
O-Ring: NBR material
Diaphragm: EPDM material
Cartridge: POM, Spring: Steel
Filter: Inox Stainless Steel
Gasket: EPDM- NBR material
Pressure Adjustment Range: 1.0-6.5 Bar
Factory Set Outlet Pressure: 3 Bar
Operating temperature range: -10 ºC / +40ºC
Saves up to 25% of water
Features interchangeable cartridge
Reduces the effects of water hammer and noise
Protects household appliances from the effects of high pressure
Durable and long-lasting

Option: Threaded union and pressure gauges are available in sizes DN15, DN20, DN25.

Application Areas

Domestic Water Systems
High-Pressure Water Systems
Heating and Cooling Systems
Building Management Systems
Industrial Processes
Various Industrial and Commercial Applications

Technical Specifications

Design Standard	TS EN 1567
Thread Standard	EN ISO 228-1
Tests	TS EN 12266-1
